Intelligent Compaction

Photos

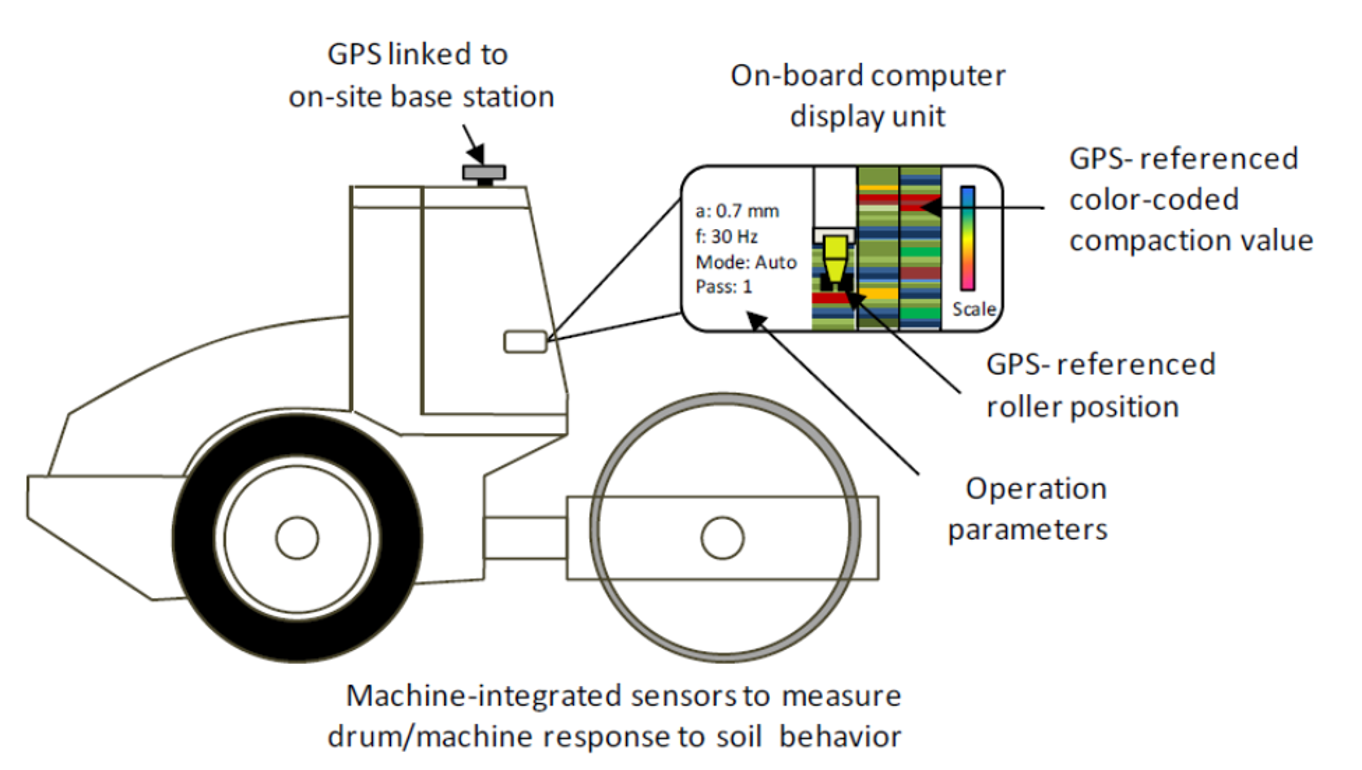

Overview of CCC/IC compaction monitoring systems. (from White and Vennapusa 2010).

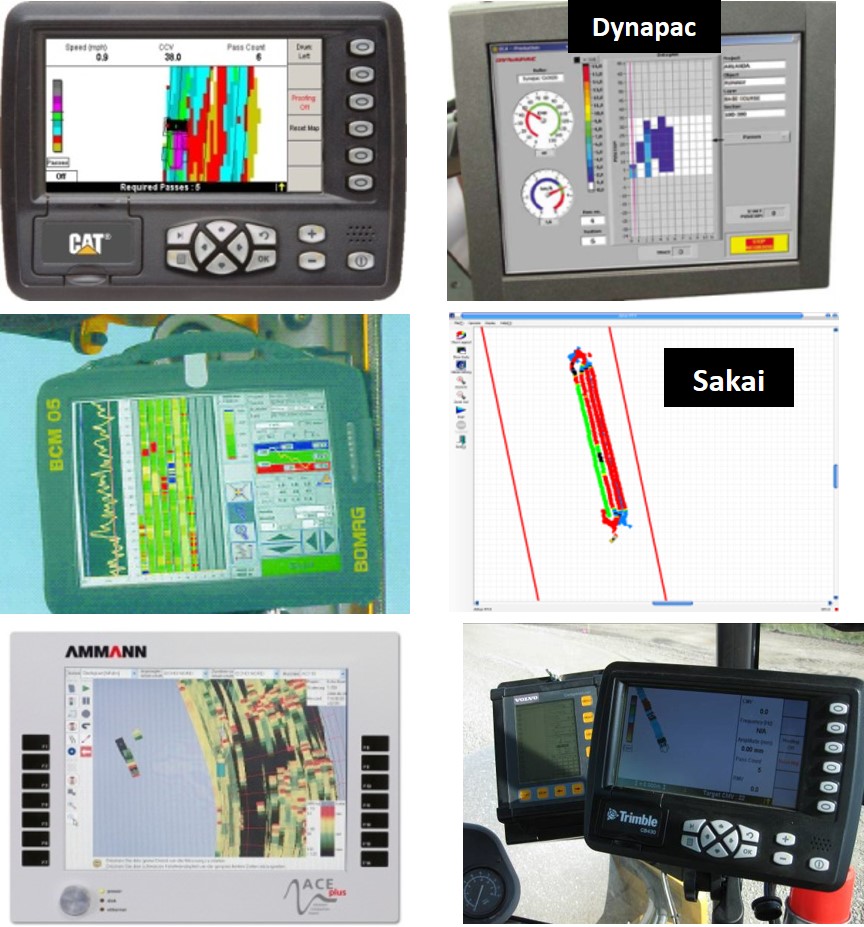

Examples of on-board display monitors used by different manufacturers. (Photographs courtesy of Caterpillar Inc.; Bomag Americas, Inc.; Amman Equipment Ltd; Dynapac USA, Inc.; Sakai America, Inc.; and David White and Pavana Vennapusa of Iowa State University.)

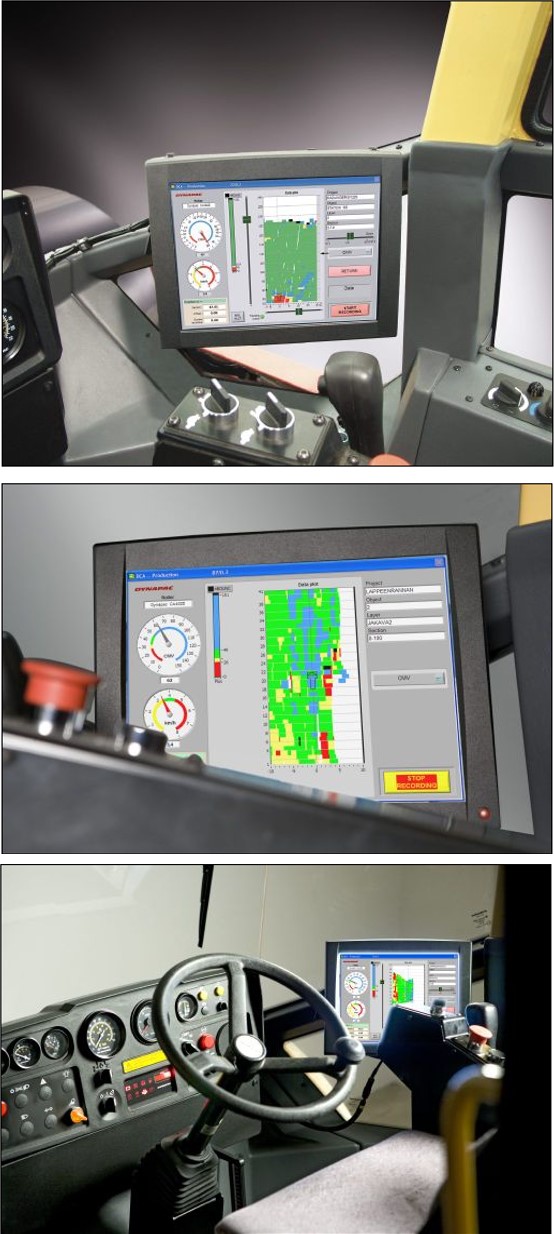

Examples of on-board display monitors used by different manufacturers.<br />(Photograph from DYNAPAC AB website).

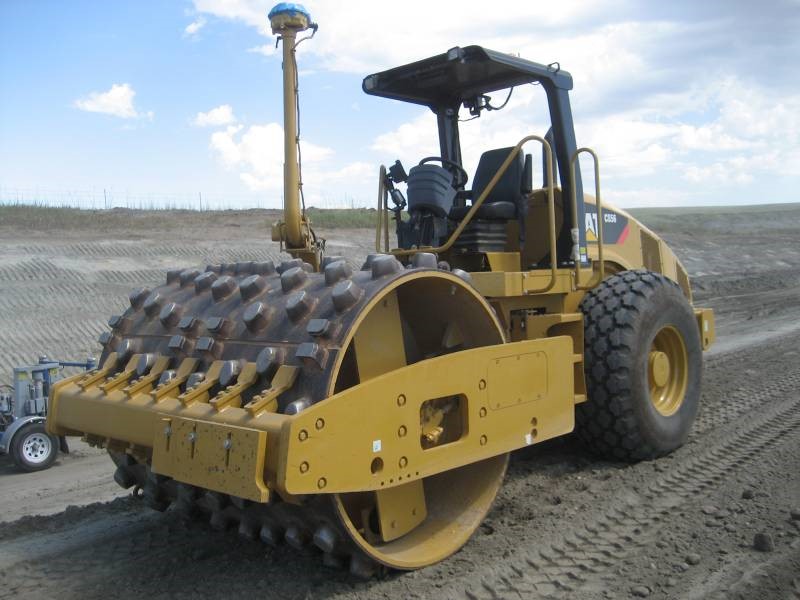

Caterpillar CS563 smooth drum vibratory roller with CMV and MDP measurement technologies (top), and Caterpillar CP56 padfoot roller with MDP measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

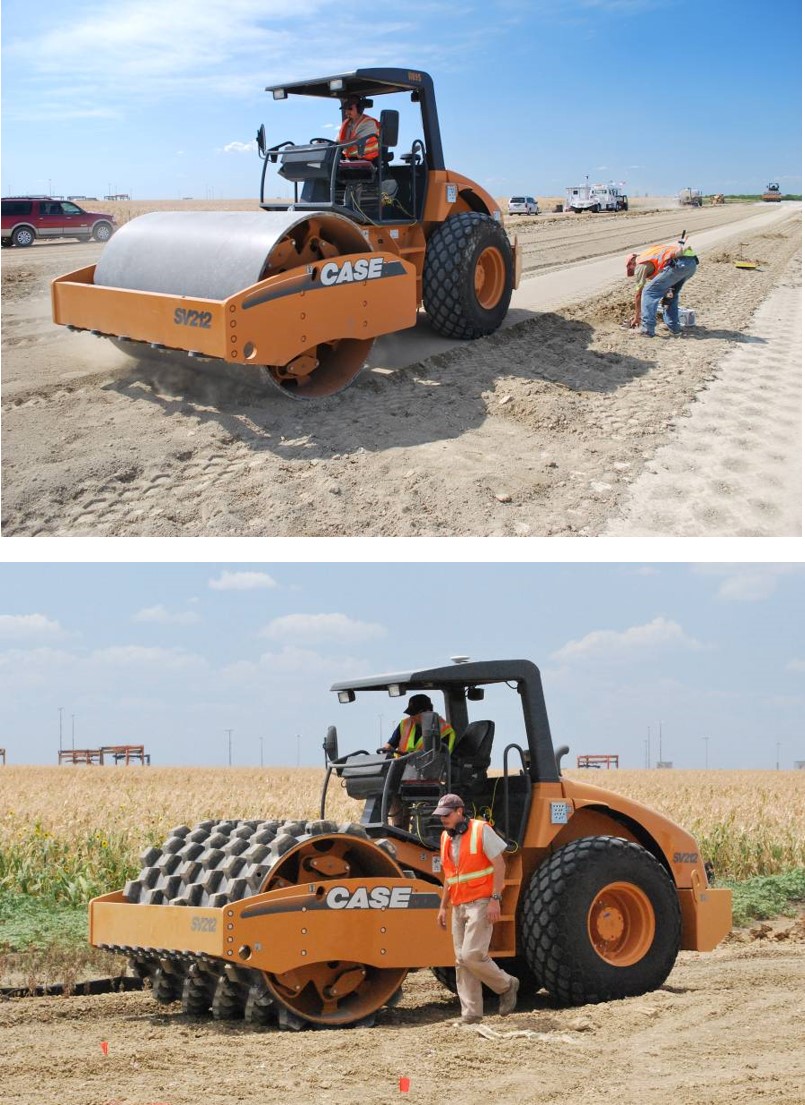

Case SV212 smooth drum and padfoot rollers equipped with roller-integrated ks measurement technology (uses AMMANN on-board display unit). (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

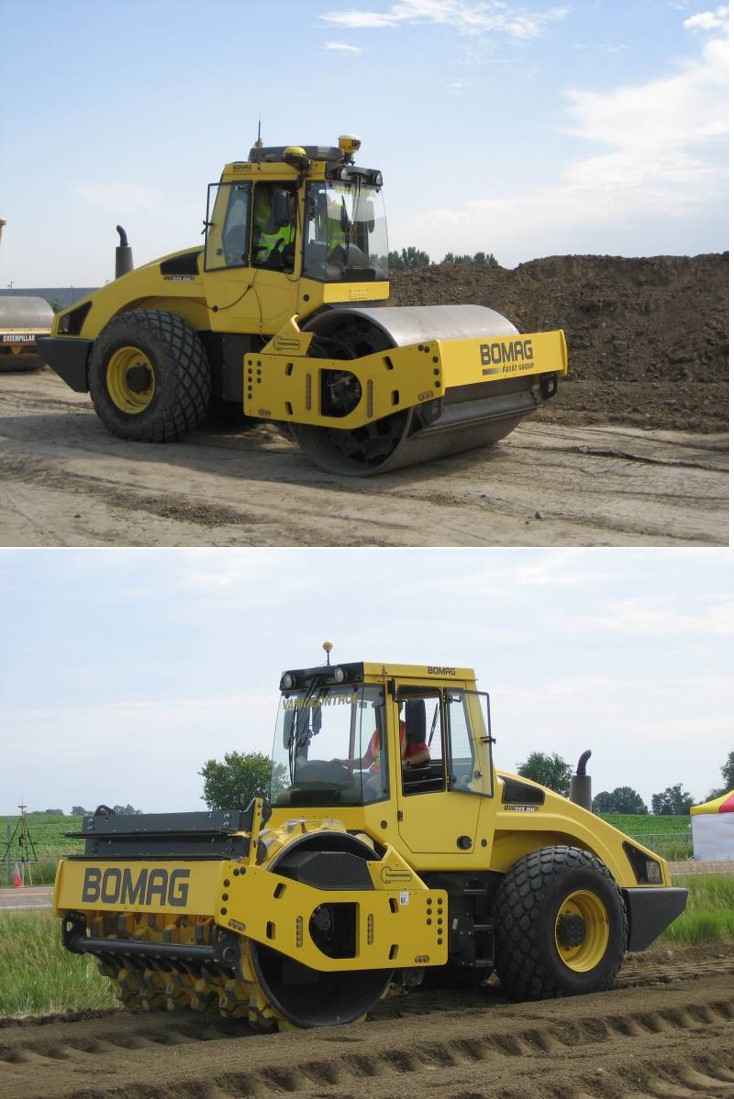

Bomag smooth drum and padfoot rollers equipped with roller-integrated EVIB measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

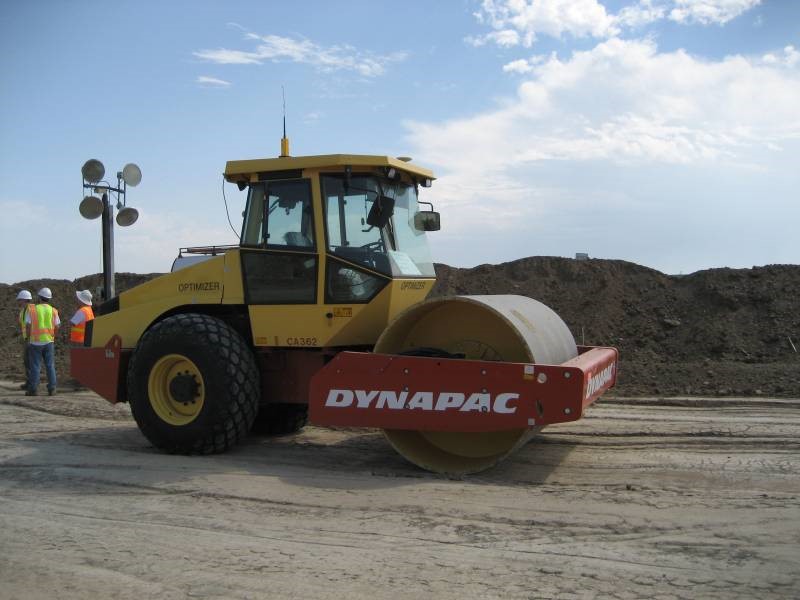

Dynapac smooth drum roller equipped with CMV measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

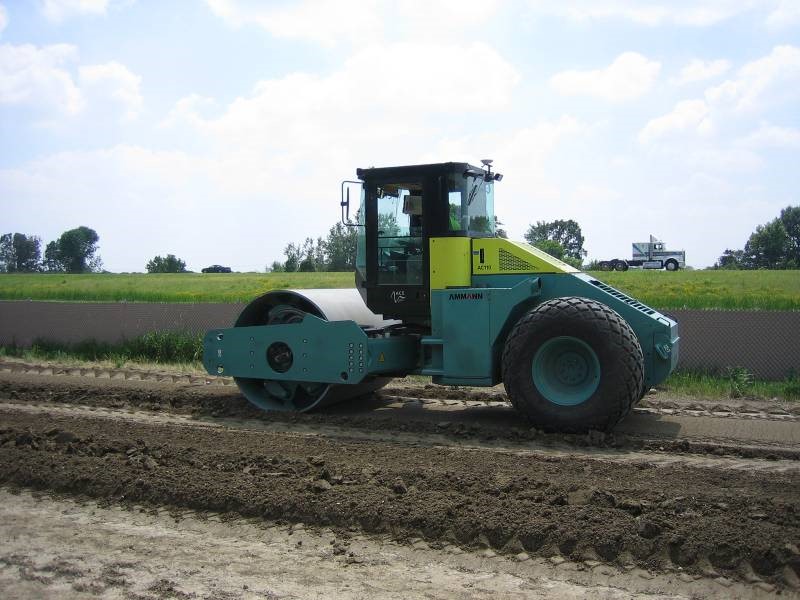

Ammann smooth drum roller equipped with roller-integrated ks measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

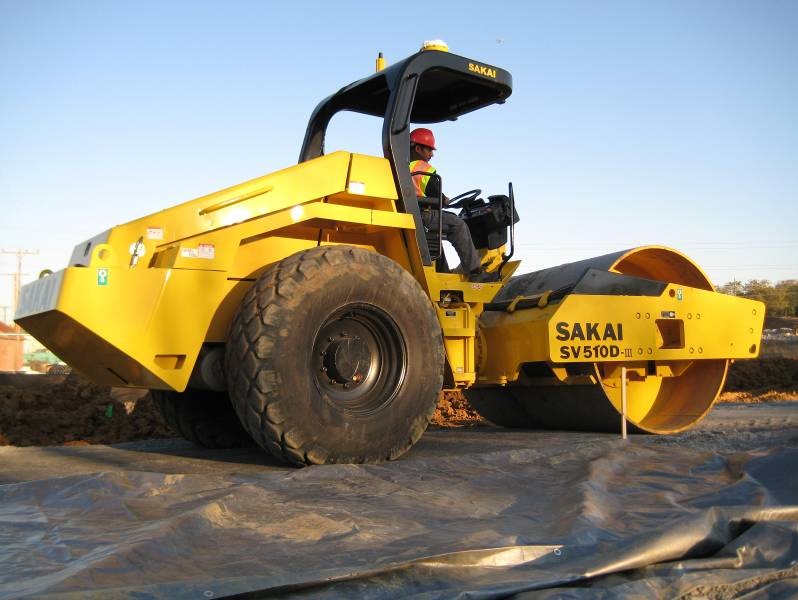

Sakai smooth drum roller equipped with CCV measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

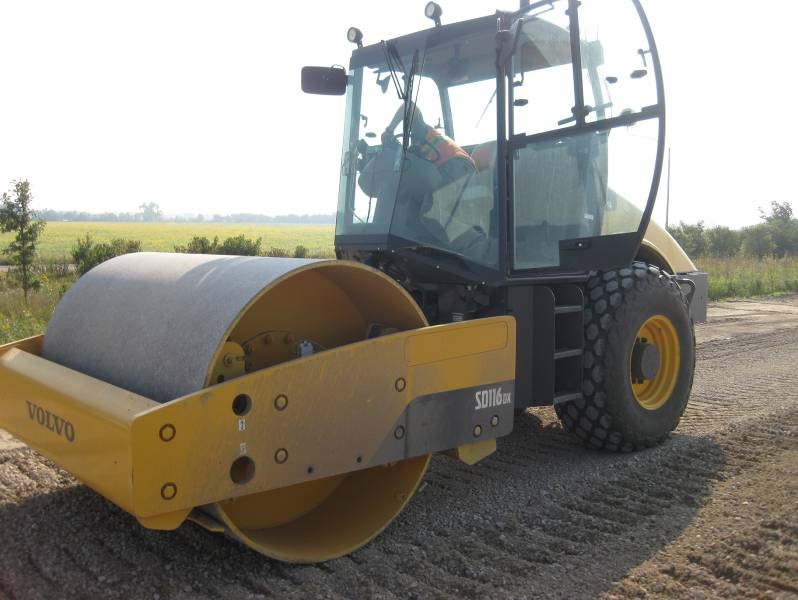

Volvo smooth drum roller equipped with CMV measurement technology. (Courtesy of David White and Pavana Vennapusa of Iowa State University.)

Overview

<figure id='attachment_1491' style='max-width:538px' class='caption aligncenter'><img class="wp-image-1491 size-full" style="border: 2px solid #696969;" src="https://www.geoinstitute.org/sites/default/files/geotech-tools-uploads/…; alt="A graphic showing an overview of continuous compaction control for intelligent compaction monitoring systems." width="538" height="292" /><figcaption class='caption-text'> Overview of CCC/IC compaction monitoring systems. From White and Vennapusa 2010</figcaption></figure>Roller intelligent compaction (IC) provides a record of soil compaction properties to the operator via an on-board display unit in the roller cabin in real-time. Advantages include providing 100% coverage of compacted areas, while automatically adjusting the compaction process accordingly; increasing productivity; and minimizing costs. This technique is applicable to new embankments, embankment widening, and stabilization of the working platform.
